3 Way Ball Valve

3 Way Ball Valve Manufacturer

Features

  • Maximum working pressure: 3000 psi (206 bar) at 38°C
  • Working temperature : From -54°C to 180°C with PEEK Packing.
  • A short handle gives quarter turn rust-free operation.
  • Valves with PTEF seats are supplied with short handles.
  • A robust pin is to create a positive stop.
  • The stem +with shoulder provides blowout proof design to maintain seal integrity at all pressure.
  • Optional sour gas service conforms to NACE Mr0175.
  • Ball valves are hydrostatic tested at the full rated pressure and low pressure pneumatic at 70 psi.
  • 100% factory test
3-Way-Ball-Valve

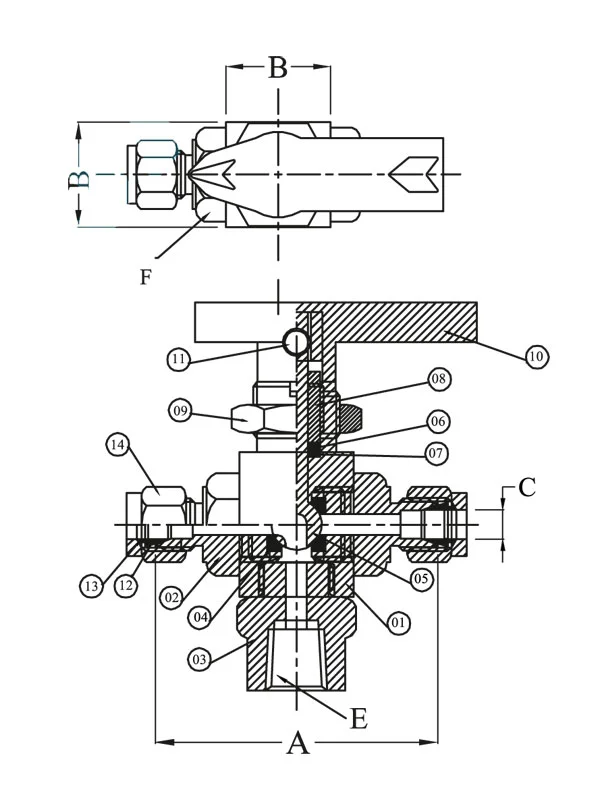

Description : Bill of Material

Sr. No.DescriptionMaterialQty
1BodySS3161
2OD AdaptorSS3162
3Female AdaptorSS3161
4Seat RingPTFE2
5Ball StemSS3161
6Gland SealPTFE2
7Gland WasherSS3161
8Gland RetainerSS3161
9Check NutSS3161
10HandlePlastic1
11Grub ScrewSS3041
12Front FerruleSS3162
13Back FerruleSS3162
14NutSS3162

Note: All dimensions are subject to change without notice All dimensions are in mm unless specified

3000 PSI (OD)

Model No. A B (SQ) C F (A/F)
YE-06-BV-3W 60.0 25.0 1/8″OD 19.0
YE-08-BV-3W 63.0 25.0 1/4″OD 19.0
YE-10-BV-3W 65.0 35.0 3/8″OD 19.0
YE-15-BV-3W 70.0 30.0 1/2″OD 27.0
YE-20-BV-3W 80.0 36.0 3/4″OD 37.0
YE-25-BV-3W 85.0 40.0 1″OD 36.0

3000 PSI (NPT)

Model No.AB (SQ)CF (A/F)
YE-06-BV-3W60.025.01/8″NPT (F)19.0
YE-08-BV-3W63.025.01/4″NPT (F)19.0
YE-10-BV-3W65.025.03/8″NPT (F)22.0
YE-15-BV-3W70.032.01/2″NPT (F)27.0
YE-20-BV-3W80.040.03/4″NPT (F)36.0
YE-25-BV-3W85.045.01″NPT (F)41.0
