Angle Needle Valves Screwed

Angle Needle Valves Screwed

Bonnet Design

Features

  • Maximum working pressure : 6000 psi (414bar) at 100°F (38°C)
  • Working temperature: -65°F (-54°C) to 464°F (240°C)
    -65°F (-54°C) to 842°F (450°C)
  • PTFE packings can be adjusted to extend the valve life.
  • Stem threads are rolled and lubricated to prevent galling and reduce operating torque.
  • Optional sour gas service conforms to NACE Mr0175.
  • Hydro test performed with pure water at 1.5 times of working pressure.
  • 100% factory test
  • Material : A479 304, A479 316, A182 GRF 316, Monel, Hastelloy, Inconel

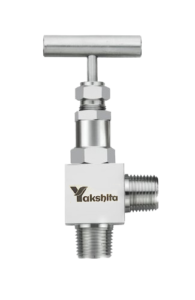

Angle-Needle-Valves-Screwed-Bonnet-Designs

Description

Part No.Part DescriptionMaterialQty.
1BodySS 3161
2Gland BodySS 3161
3Gland RetainerSS 3041
4Check NutSS 3161
5SpindleSS 3161
6Gland PackingP.T.F.E1
7Gland RingSS 3041
8Gland WasherSS 3041
9TrimSS 3161
10Dust CapRubber1
11HandleSS 3041
12Grub ScrewSS1
13Lock PinSS 3041

Note: 1. Packing is optional with graphite for high temperature to 450℃

6000 PSI

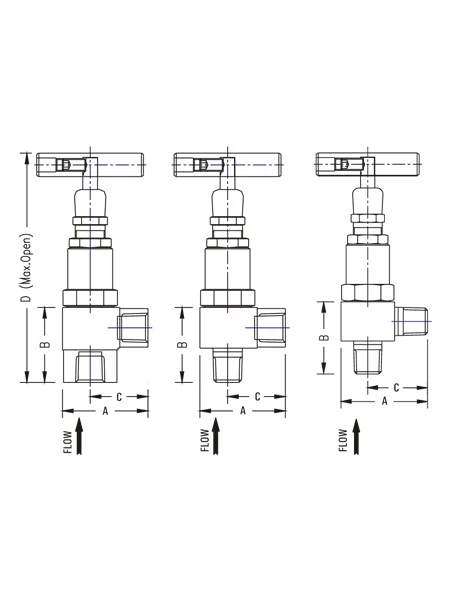

Model No. Inlet x Outlet A B C D
GV-56-ANV-4 1/4″ NPT 44 39 29 116
GV-56-ANV-6 3/8″ NPT 44 39 29 116
GV-56-ANV-8 1/2″ NPT 50 47 35 128
