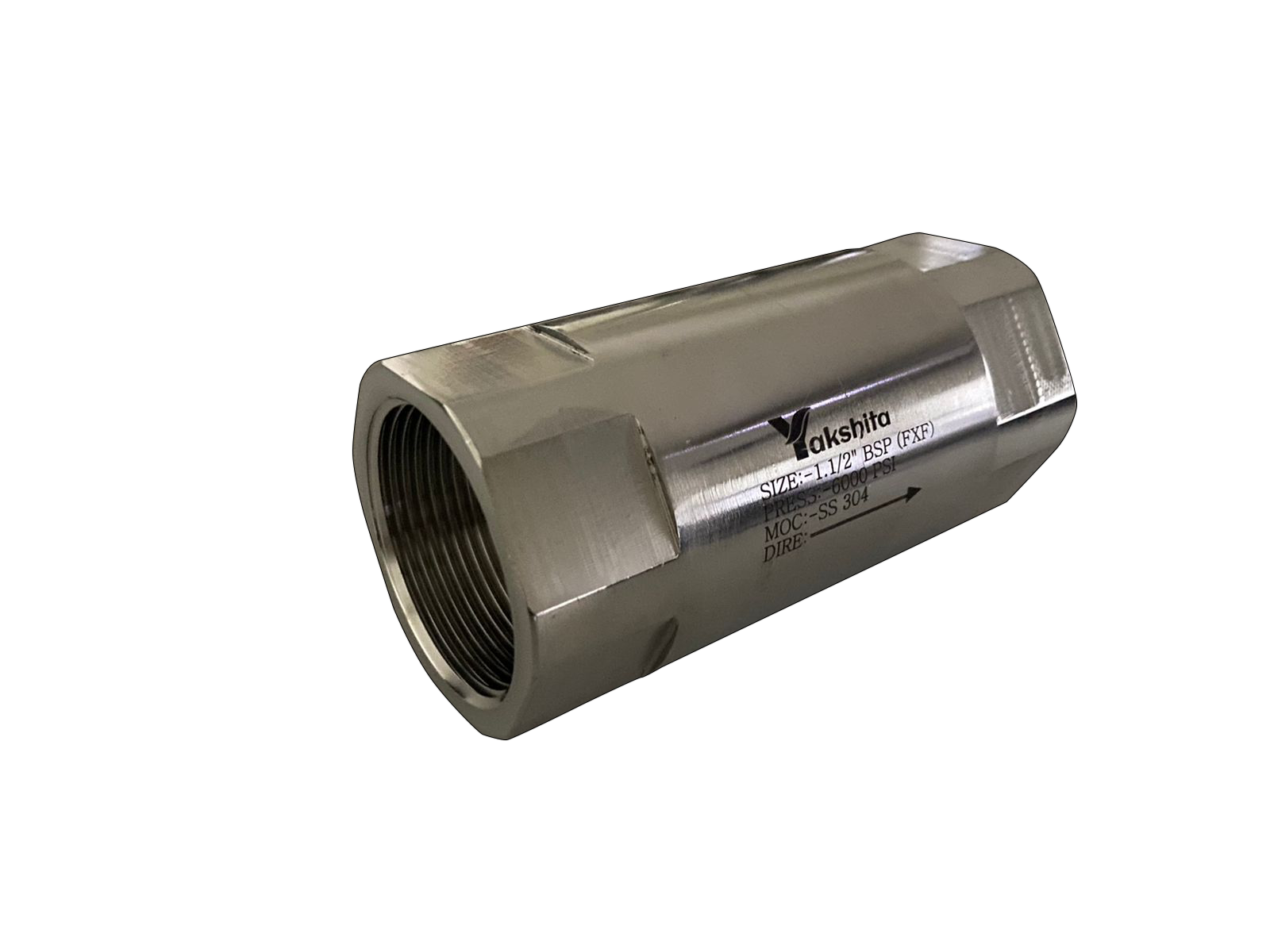

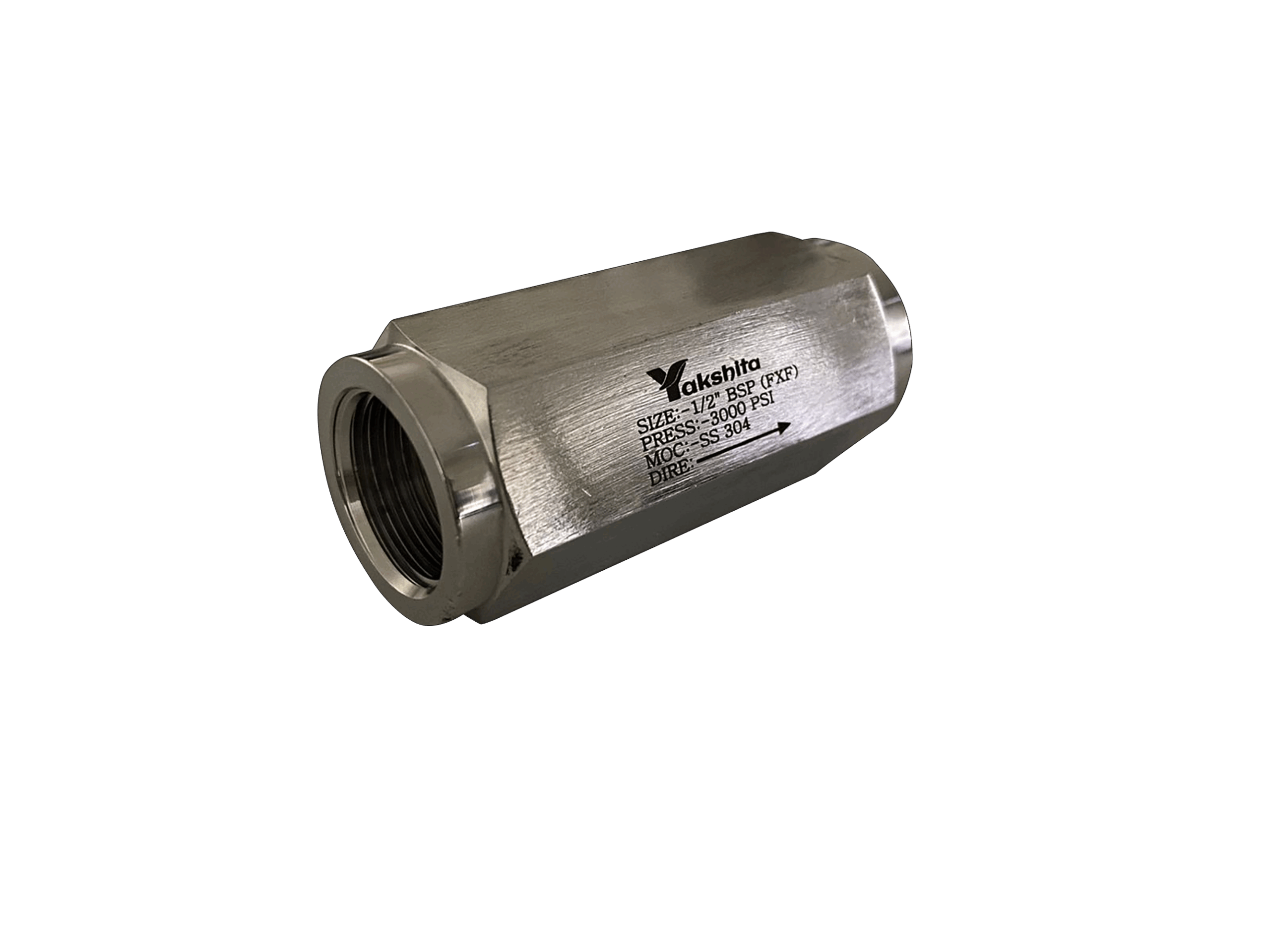

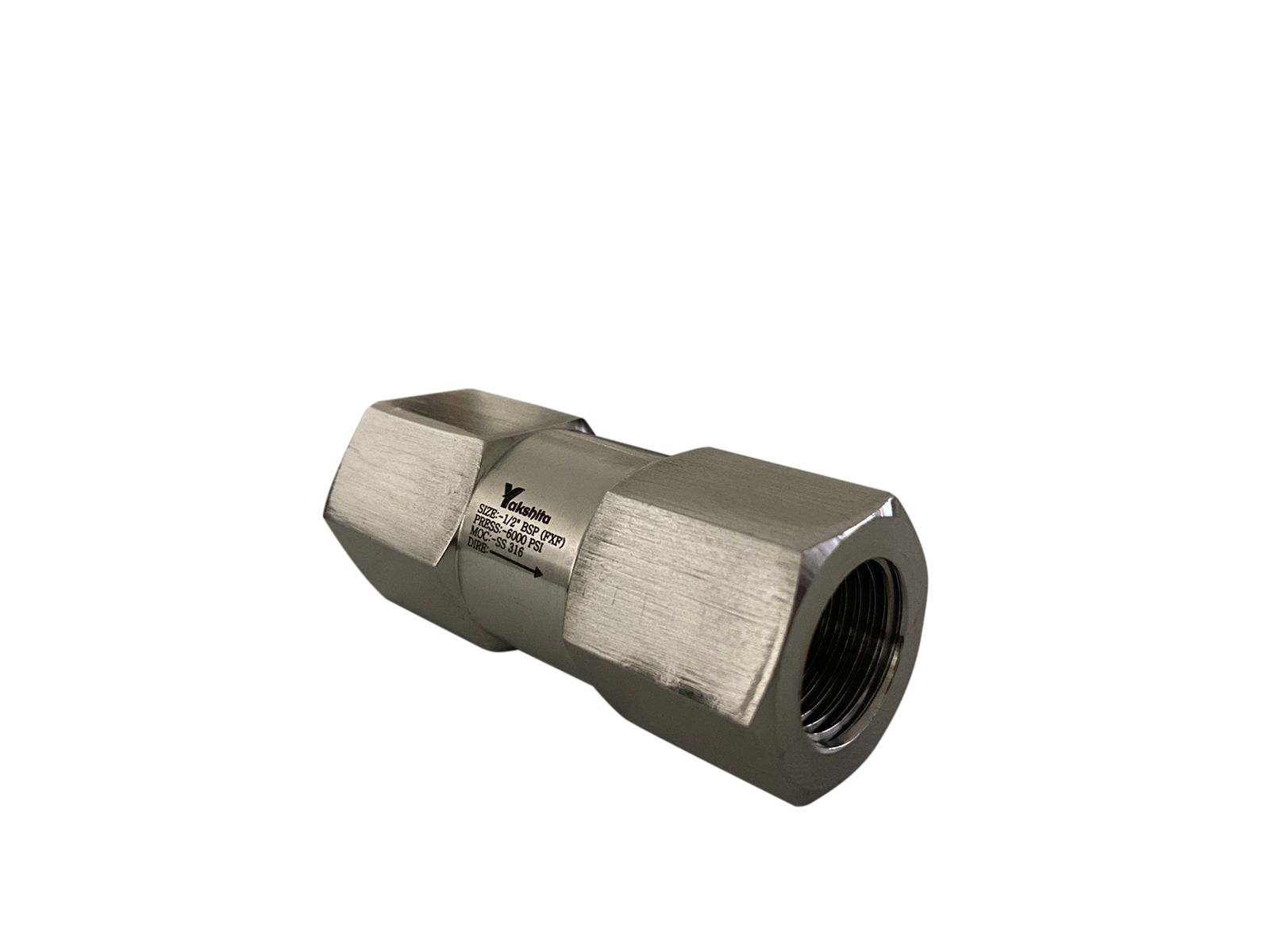

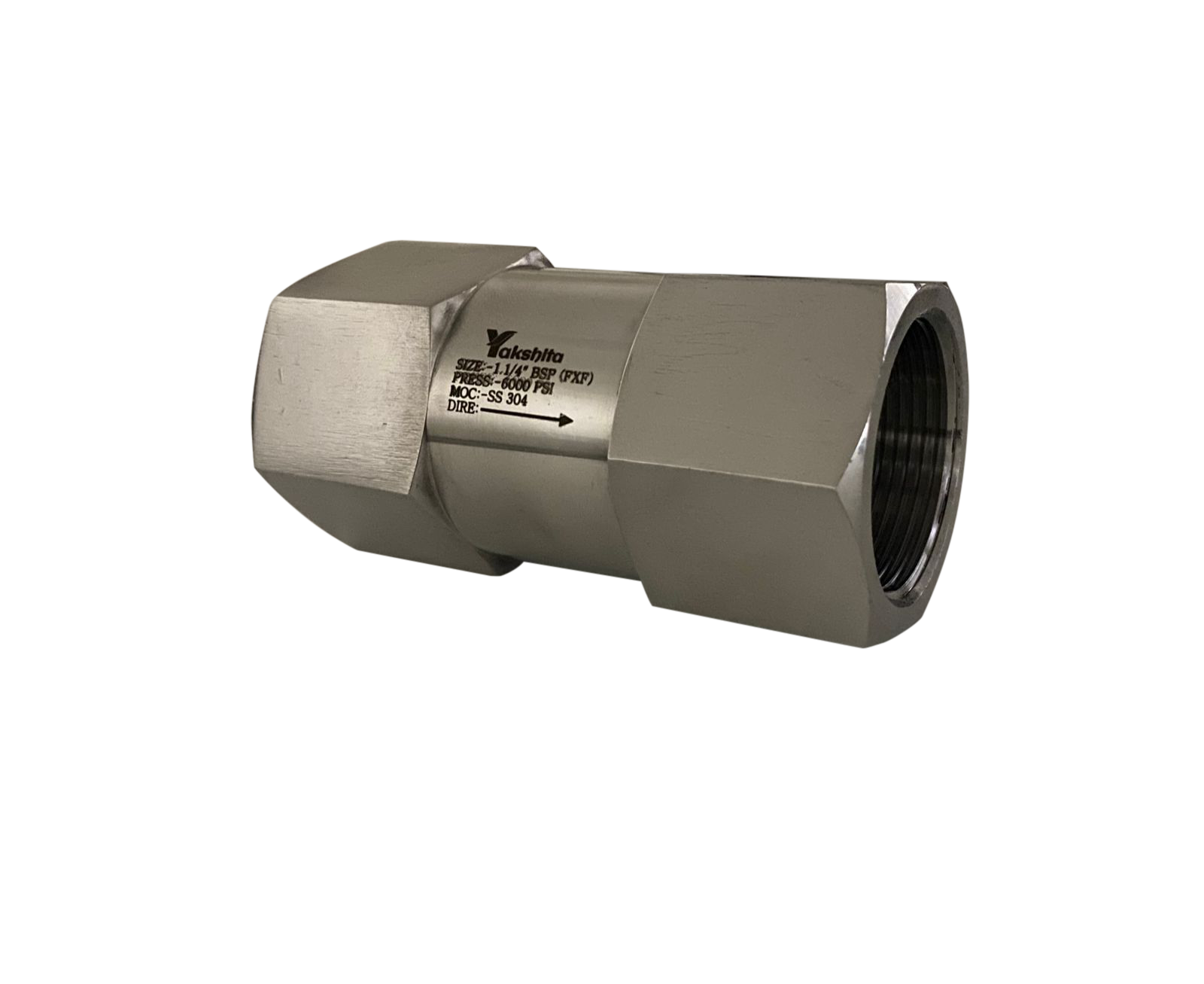

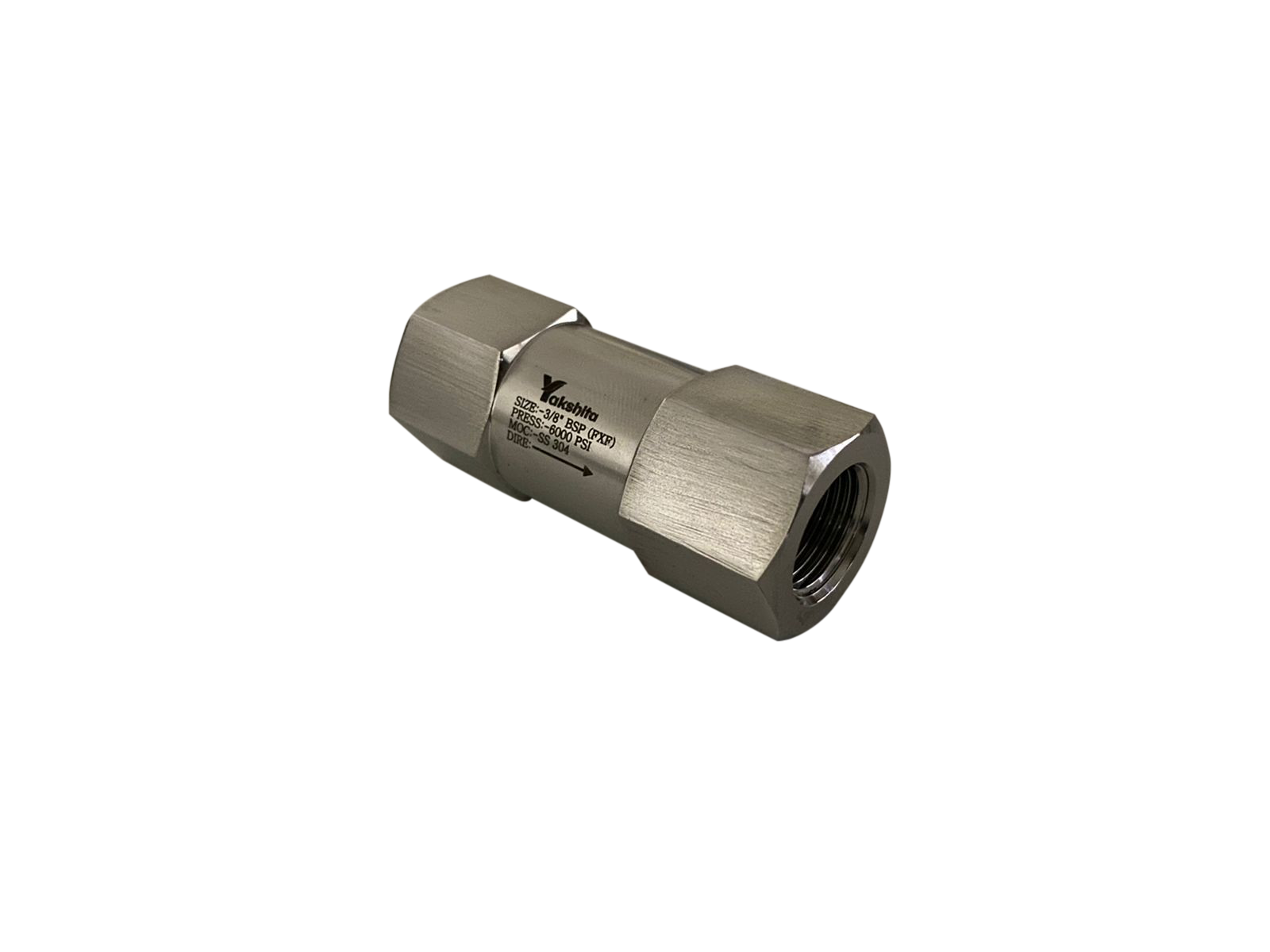

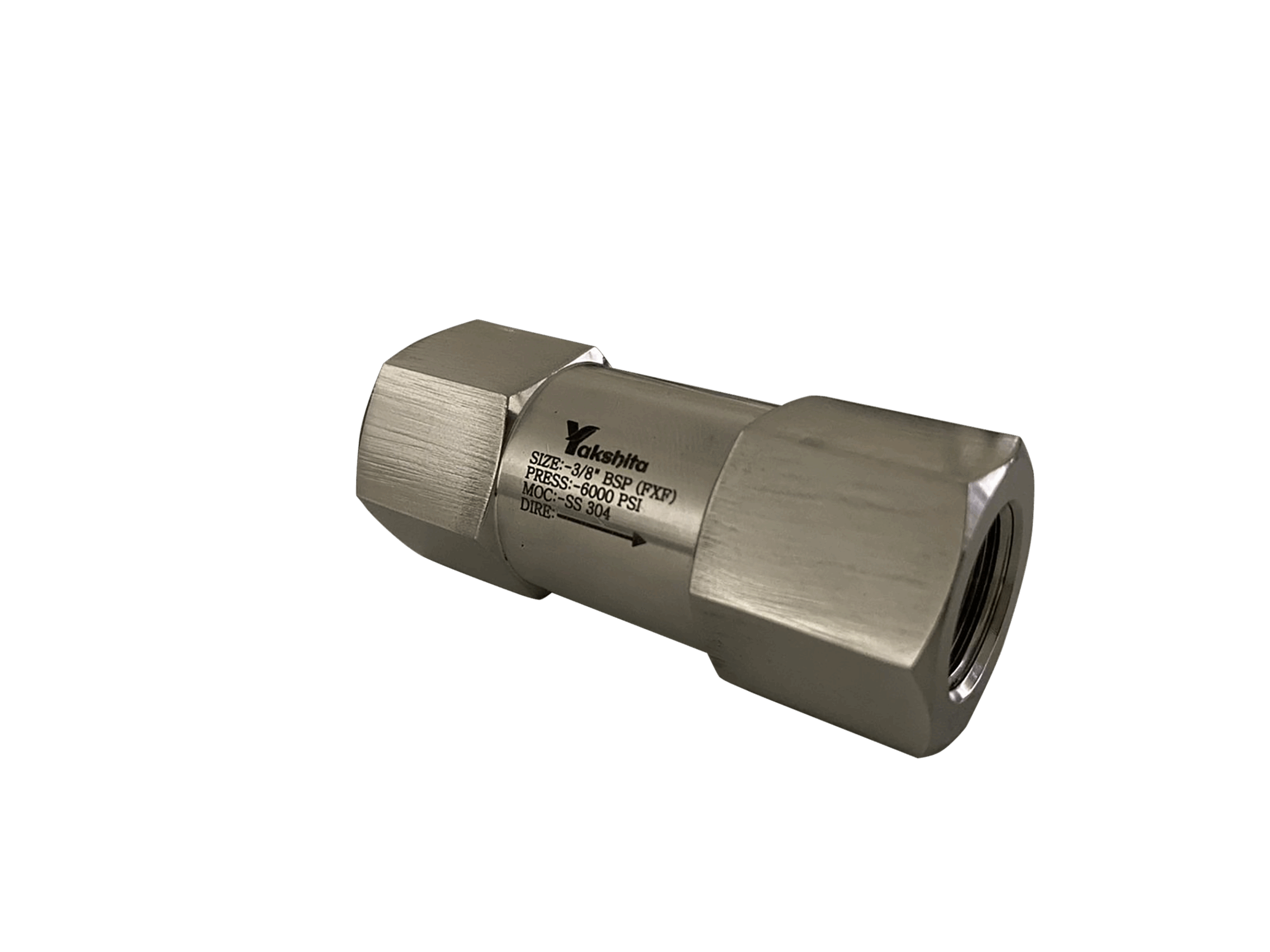

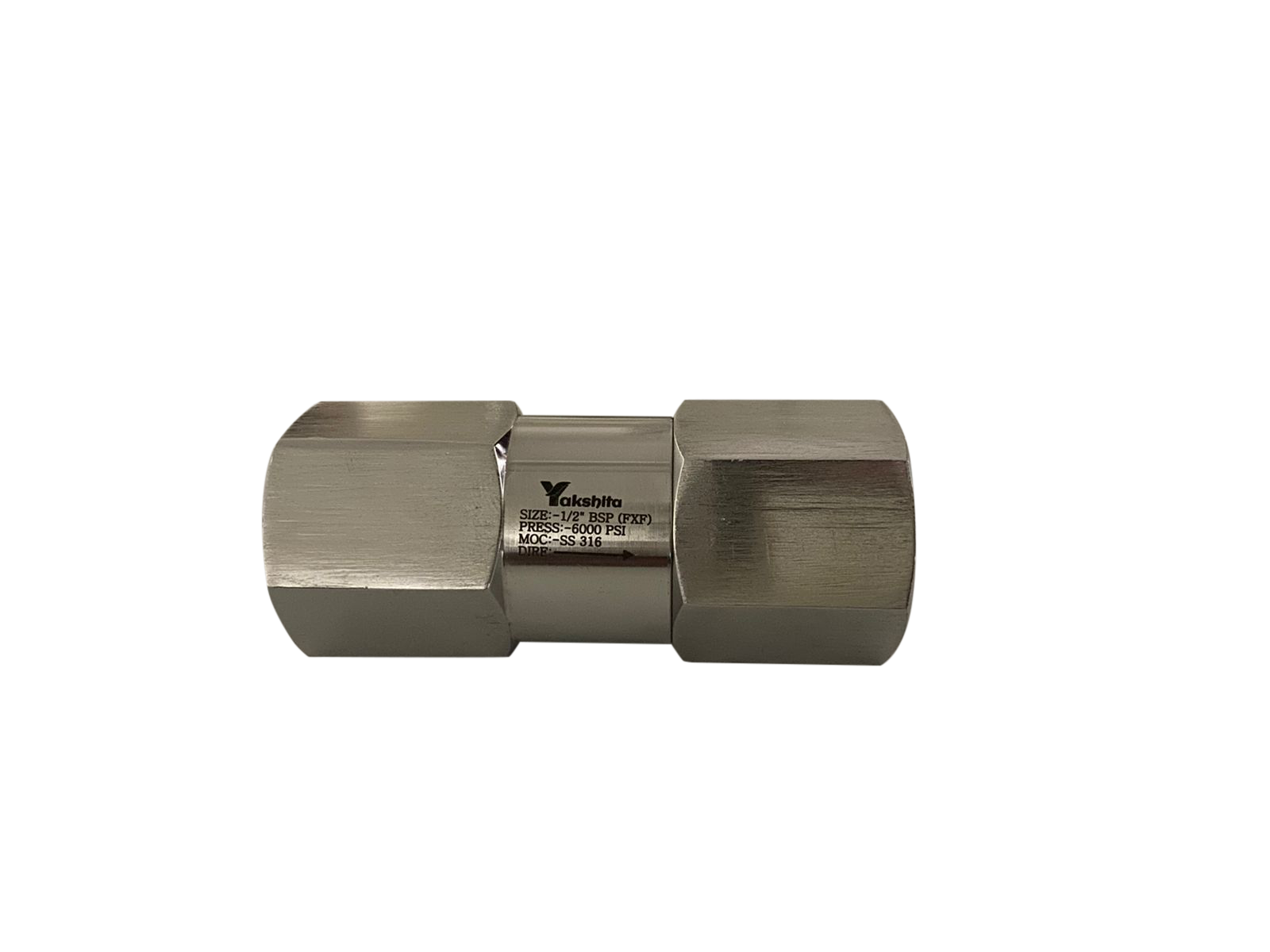

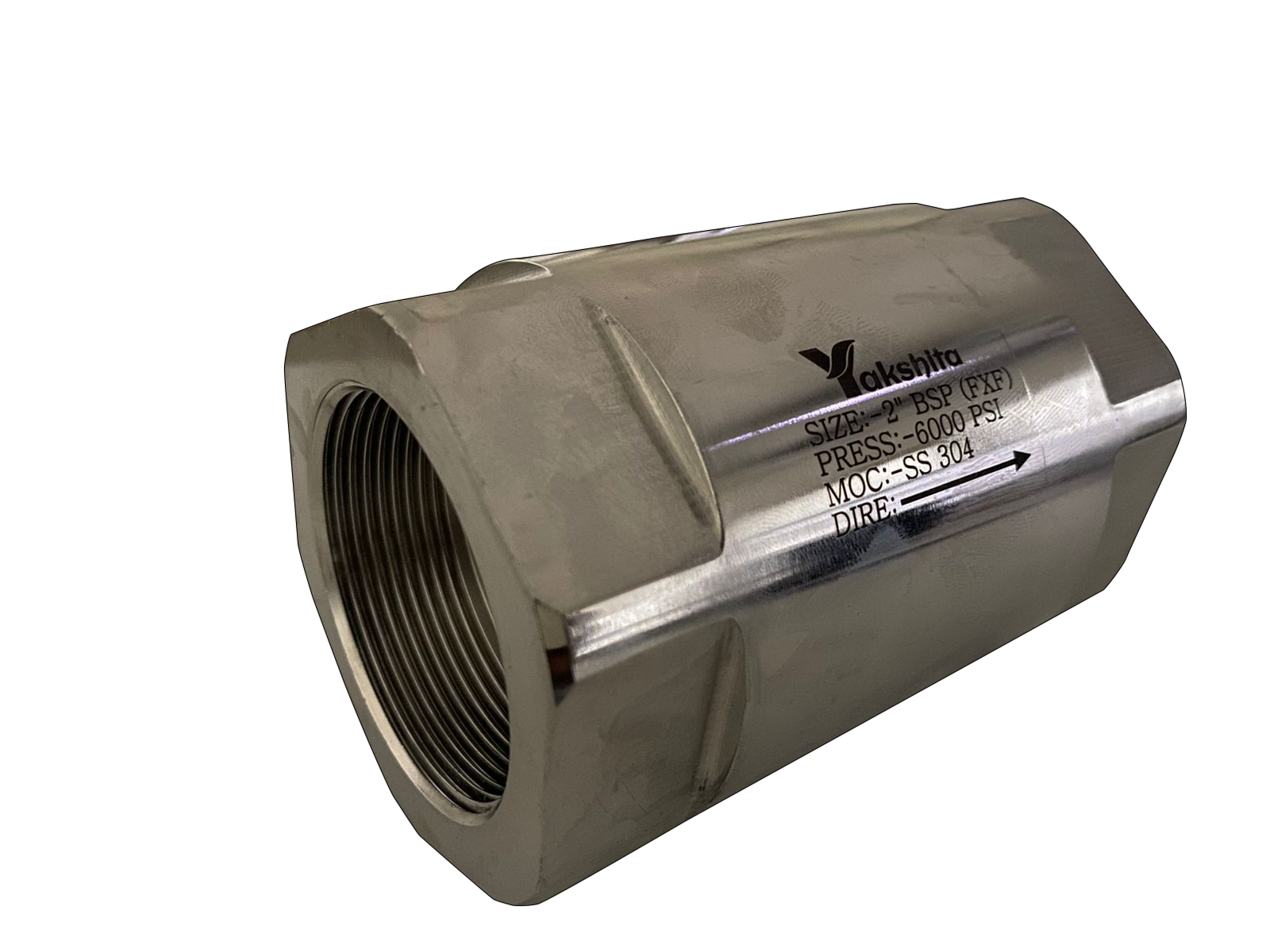

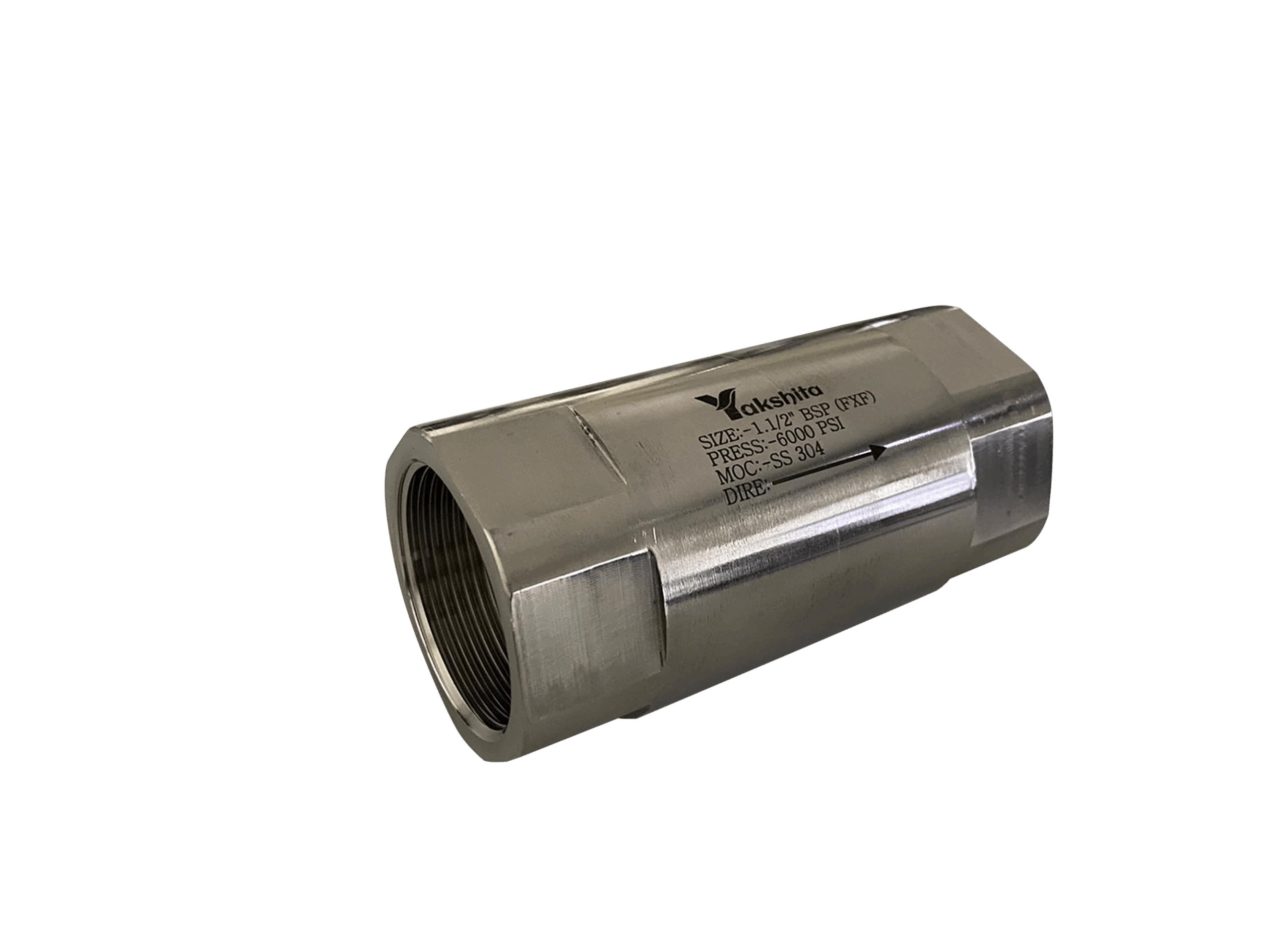

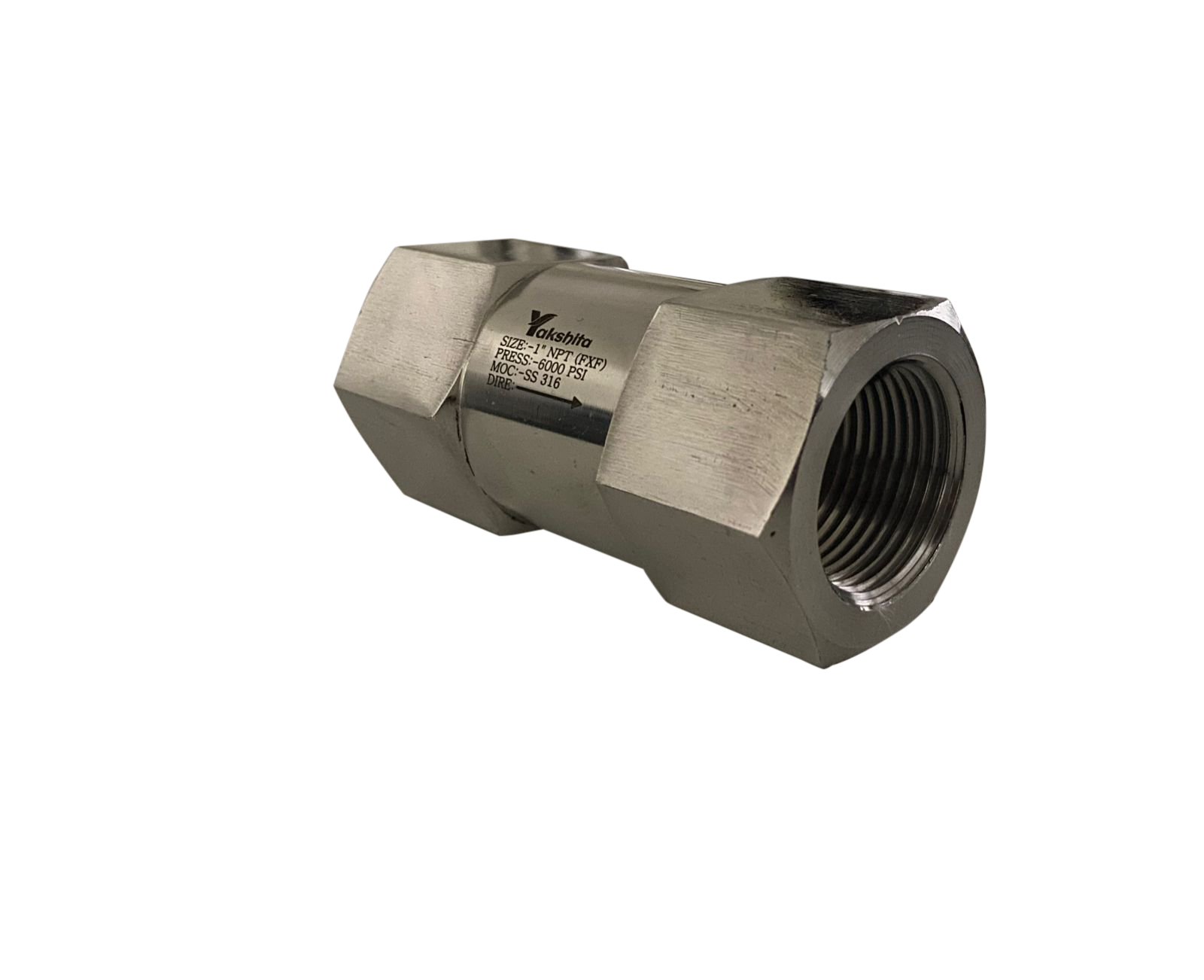

Check Valves

Specification Of Check Valves

• Product Size : 3mm, 6mm, 8mm, 10mm, 1/8″, 1/4″, 3/8″. 1/2″
• Both End Connection : O.D. (Ferrule)
• Body Material : SS316
• Medium Temperature : –23°C to 191°C

• Max. Working Pressure : 3000PSI
• Cracking Pressure : 3PSI
• Seal Material : Viton
• Fluid Coeficient : (1/8″~0.16). ( 1/4″ 6mm, 8mm~0.47). ( 3/8″~1.47). (1/2″, 10mm~1.68)
