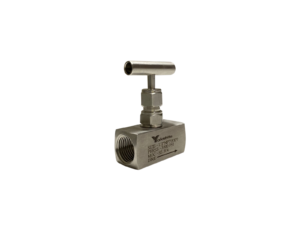

Panel Mount Needle Valves Screwed Ends Female to Female

Screwed Ends (Female X Female)

Features

  • Maximum working pressure:
    3000 psi (207 bar) at 100°F (38°C)
    6000 psi (414bar) at 100°F (38°C)
  • Working temperature:
    -22°F (-30°C) to 392°F (200°C)
    -65°F (-54°C) to 842°F (450°C)
  • PTFE packings can be adjusted to extend the valve life.
  • Stem threads are rolled and lubricated to prevent galling and reduce operating torque.
  • Optional sour gas service conforms to NACE Mr0175.
  • Hydro test was performed with pure water at 1.5 times working pressure.
  • 100% factory test
  • Bonnet Lock pin Prevents accidental Removal while in service.
  • Material : A479 304, A479 316, A182 GRF 316, Monel, Hastelloy, Inconel
Panel-Mount-Needle-Valves-Screwed-Ends-Female-to-Female-In-India

Description

Part No. Part Description Material Qty.
1 Body SS 316 1
2 Gland Body SS 316 1
3 Gland Retainer SS 304 1
4 Check Nut SS 304 1
5 Spindle SS 316 1
6 Gland Packing P.T.F.E 1
7 Gland Ring SS 304 1
8 Gland Washer SS 304 1
9 Trim SS 316 1
10 Dust Cap Rubber 1
11 Handle SS 304 1
12 Grub Screw SS 1
13 Lock Pin SS 304 1

Note: 1. Packing is optional with graphite for high temperature to 450℃

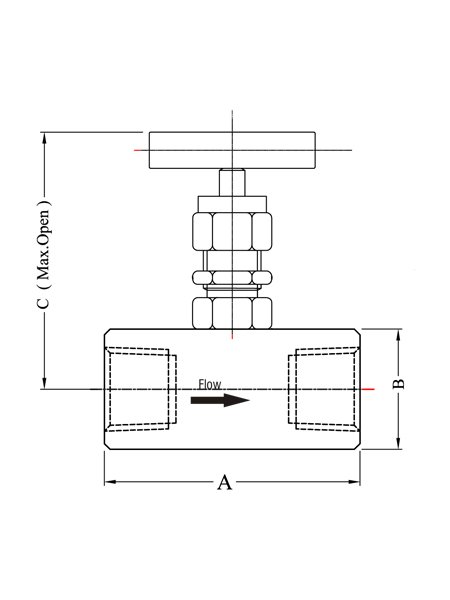

panel-mount-needle-valves-screwed-ends-female-x-female-graph

6000 PSI

Model No.Inlet x OutletABC
YE-06-PNV-81/4″ NPT502265
YE-06-PNV-103/8″ NPT552565
YE-06-PNV-151/2″NPT602865
YE-06-PNV-203/4″ NPT653565
YE-06-PNV-251″ NPT704578

Note: All dimensions are subject to change without notice
All dimensions are in mm unless specified

3000 PSI

Model No. Inlet x Outlet A B C
YE-06-PNV-8 1/4″ NPT 45 20 60
YE-06-PNV-10 3/8″ NPT 50 22 60
YE-06-PNV-15 1/2″NPT 55 25 63
YE-06-PNV-20 3/4″ NPT 65 32 70
YE-06-PNV-25 1″ NPT 70 40 85
